Preparing to Deploy the SD-Branch Network

This section of the guide will detail how to configure Central to prepare for an SD-Branch deployment. The four requirements include importing devices, licensing devices, creating groups, and creating site configuration. This section will also cover the fundamental differences between group and device configuration levels.

Importing devices

要部署SD-Branch Aruba，需要将设备获得许可并在Central的库存中。此过程将涵盖如何导入设备并应用正确的许可证。

将设备添加到设备清单中

Aruba automatically adds newly purchased devices to Central. However, there is also the option of manually adding a device by using its MAC address and serial number. This procedure will cover manually adding devices to Central.

步骤1在中央帐户主页上选择Device Inventory然后单击添加设备。

第2步在里面添加设备dialog box, enter the serial number and MAC address for each device that you need to add to the device inventory list, and then click完毕。

许可设备订阅键

将设备添加到中央后，将需要获得许可才能运行。本节将介绍如何将许可证分配给设备。应用的许可将定义设备可以使用的功能。为了确保设备具有正确的许可，请咨询Aruba SD-WAN Ordering Guide。本指南需要“先进的安全”licenses for Gateways. For the switches and AP’s the“Foundation”许可将足够，尽管Aruba建议使用先进的AI Insights的许可。

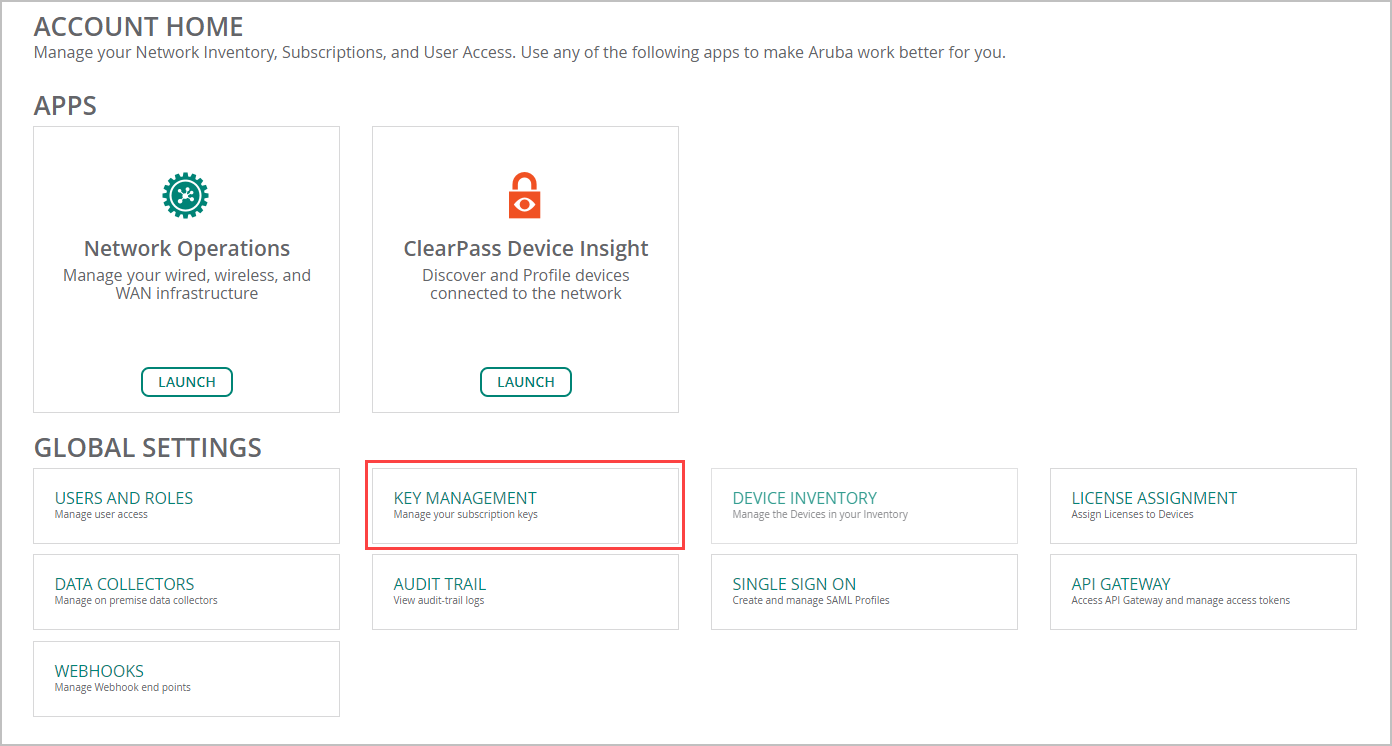

步骤1On the Aruba Central Account Home page, selectKey Management。

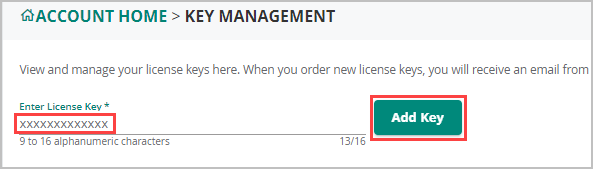

第2步在里面Key Managementdialog box, enter a subscription key, and then clickAdd Key。

Assign Subscriptions to the Devices

Once the subscription key has been added to Central, licenses must be applied to each device. Enable automatic license assignment with the,自动订阅选项。Manual subscription application is possible, however Aruba does not recommend manually assigning licenses as it creates extra administrative overhead. Follow the below steps to enable automatic licensing.

步骤1Navigate to许可分配

第2步选择自动分配切换。

步骤3为每种产品选择以下许可证，然后单击更新。

1. Gateways:SD分支with Security
2. 交换:Foundation
3. 接入点:先进的

Step 4重复步骤2和3对于网关和开关选项卡。

定义设备组

A device’s final configuration is a combination of the group configuration along with the device-specific configuration. When creating groups for devices, they should have similar network functions so that common configuration such as VLAN’s, NTP, and DNS will be applied from the group level. Device-specific configurations, like IP addresses, should be applied at the device level. Within Central, there are two group types, template groups and UI groups. Template groups are CLI based configuration files pushed down to a device. Device specific information is defined using variables. With UI groups, all configuration is done via the Central user interface. Device specific configuration can be applied by selecting a particular device and configuring through the user interface.
Template groups are an excellent choice for when devices have a lot of overlapping configuration and when that configuration will not change often. UI groups are a great choice for a workflow driven approach to configuration as well as the flexibility to change single device configurations. In both cases, devices in the same group need to have like configuration. If there is a situation where port layouts have to change or the topology of the branch differs from other sites, its recommended to create a new group and configuration for that different site.

Note:这个图表没有反映出确切的命名和type used in the guide. It is for reference purposes only.

配置设备组

以下过程将显示如何创建组。本指南将为每个组使用以下组和组类型。

步骤1在左导航窗格中，在“维护”部分中，选择组织。

第2步点击Groups标签

步骤3点击（+）Icon to create a new group

Step 4Name the group, and select what the group will contain. Follow the table above.

Step 5选择设备Architecture和Network Role。

Step 6Repeat Steps 3-5 for each group.

创建站点

中心使用站点在同一地理位置分组设备。网站还用于识别应将哪些网关聚集在一起，哪些AP和开关位于同一位置。此过程将介绍如何创建站点，该站点将在本指南中以后使用。

步骤1在中央帐户主页上，启动网络操作app.

第2步在里面filter drop-down list, select所有设备。

步骤3在左导航窗格中，在“维护”部分中，选择组织。

Step 4点击Sites tile, then clickNew Site在左下方。

Step 5在创建新站点对话框中，实现以下设置，然后单击Add。

• 站点名称:Aruba Networks HQ
• Street Address:3333 Scott Blvd
• 城市:Santa Clara
• 国家:美国
• State or Province:California
• 邮编/邮政编码:95054

Step 6Repeat步骤4和5对于所有远程站点和DC。本指南使用以下网站：

---
